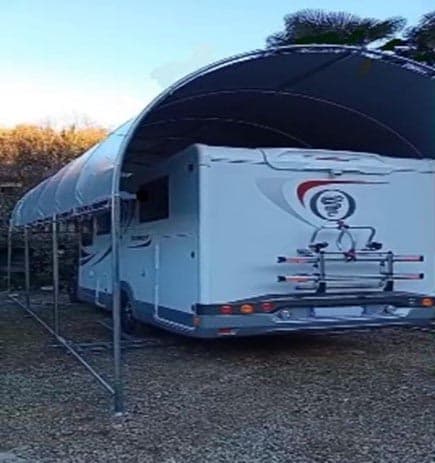

Sprint Model Cover

Installation service available on request

Protects your vehicle from hail, rain, sun, and snow. In the event of snow, we recommend removing excess weight to prevent overloading. Without such precautions, Co.AR.CA Ltd accepts no responsibility. The Sprint Model Cover also protects against pollution and other types of wear caused by atmospheric agents.

Technical Specifications:
PVC fabric, double-coated, 700 g/m², waterproof, highly resistant, Class 2 self-extinguishing, heat-sealed.
The cover is closed on three sides, while the front side remains open.
The structure is made of hot-dip galvanised iron ø 40×2 with ø 45×2 connecting joints, a material that does not rust.
The structure is extremely robust since, along the lower and upper perimeter, between each span (excluding the front/entrance side), cross connections are mounted to keep the entire structure compact and stable.
On the roof, to ensure compactness and to prevent water pockets or deformations caused by snow, an additional arch is inserted between each frame. At the base joint of every support post a 100×100 mm plate is provided with four ø 10 mm holes at the corners for anchoring with plugs.

Sprint model cover with 40 diam. structure

• ITEM CODE 10.400.01 DIM. 5.00 x 3.00 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.400.02 DIM. 6.00 x 3.00 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.400.03 DIM. 7.00 x 3.00 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.400.04 DIM. 8.00 x 3.00 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.400.05 DIM. 5.00 x 3.50 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.400.06 DIM. 6.00 x 3.50 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.400.07 DIM. 7.00 x 3.50 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.400.08 DIM. 8.00 x 3.50 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m

Sprint model cover with 60 diam. structure

• ITEM CODE 10.401.01 DIM. 5.00 x 3.00 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.402.02 DIM. 6.00 x 3.00 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.403.03 DIM. 7.00 x 3.00 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.404.04 DIM. 8.00 x 3.00 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.405.05 DIM. 5.00 x 3.50 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.406.06 DIM. 6.00 x 3.50 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.407.07 DIM. 7.00 x 3.50 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m
• ITEM CODE 10.408.08 DIM. 8.00 x 3.50 x H 3.80 m | RIDGE HEIGHT – CLEARANCE 3.50 m

The structure is composed of 4 open sides; the roof is covered with PVC fabric, double-coated, 700 g/m², waterproof, highly resistant, Class 2 self-extinguishing, heat-sealed.
The perimeter edge of the fabric is double heat-sealed, ensuring high resistance during the eyeletting process and allowing the fabric to be fixed to the structure with elastic cord. The Sprint Model Cover is very versatile, as it can be integrated with closure panels according to your needs or the conditions of the installation site.

On request, the Sprint Cover can be equipped with PVC panel kits for the closure of all 4 sides. Below are the available PVC panel kits with related item codes:

PVC side panel kit (right and left sides along the longer perimeter) for Sprint Model Cover:

Item Code 10.400.01 – 5.00 x H 2.00 m

Item Code 10.400.02 – 6.00 x H 2.00 m

Item Code 10.400.03 – 7.00 x H 2.00 m

Item Code 10.400.04 – 8.00 x H 2.00 m

PVC front/rear closure panel kit for Sprint Model Cover, width 3.00 m:

Item Code 10.100.01 – 2.90 x H 2.00 m

PVC front/rear closure panel kit for Sprint Model Cover, width 3.50 m:

Item Code 10.100.02 – 3.40 x H 2.00 m

PVC front/rear closure panel kit with central ridge for Sprint Model Cover, width 3.00 m:

Item Code 10.700.01 – 2.90 x H 3.80 m

PVC front/rear closure panel kit with central ridge for Sprint Model Cover, width 3.50 m:

Item Code 10.700.02 – 3.40 x H 3.80 m
